Wireless Trigger Adapter

The advanced DrumLink system brings wireless trigger support to V-Drums and other Roland drumming gear. When paired with the companion DH-10 DrumLink Hub, the WT-10 Wireless Trigger Adapter converts a wired pad to wireless triggering, providing lightning-fast response, rock-solid performance, and streamlined connectivity for quicker setup and a cleaner look. The WT-10 also offers an easy way for owners of Drum Workshop’s DWe acoustic-electronic wireless convertible drums to integrate Roland pads within their sets.

Wireless FormatProprietary ProtocolWireless Carrier Frequency2.4-2.485 GHz ISM BandTransmission Range10 m (32 feet) line-of-sight

* May vary due to local conditionsConnectorsTrigger input jacks

(PAD1, PAD2)Power SupplyAlkaline battery (AA, LR6) x 2Battery LifeApprox. 6 months

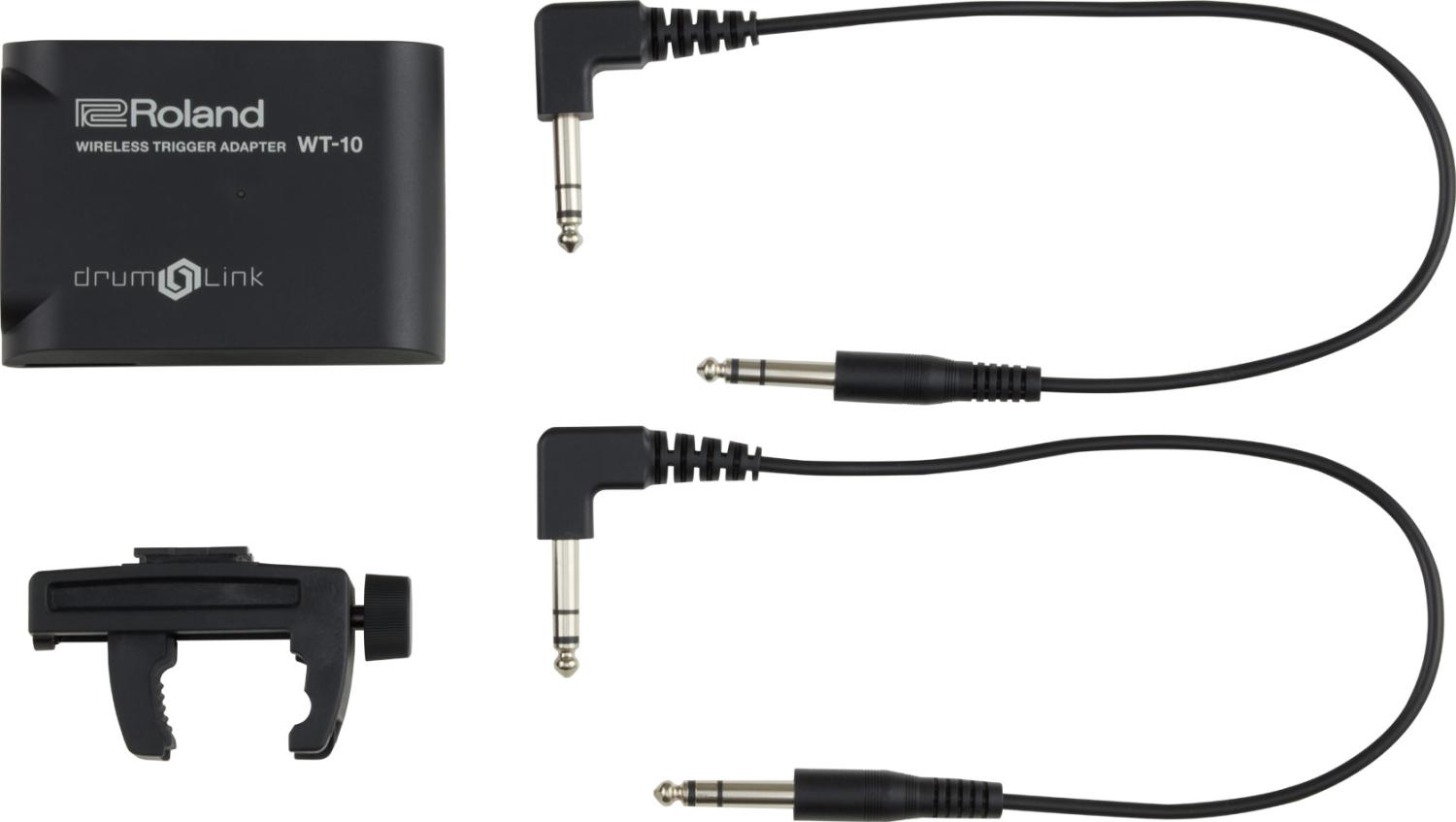

* This can vary depending on the conditions of use.AccessoriesClamp, Connection cables (0.4 m / 15 inches) x 2, Owner's Manual, Leaflet "USING THE UNIT SAFELY"

Width70 mm

2-13/16 inchesDepth31 mm

1-1/4 inchesHeight98 mm

3-7/8 inchesWeight170 g / 6 oz (including batteries)Size and Weight (Including horizontal clamp)Width84 mm

3-5/16 inchesDepth73 mm

2-7/8 inchesHeight98 mm

3-7/8 inchesWeight225 g / 8 oz (including batteries and clamp)Clamp Mountable Diameter SizeClamp Mountable Diameter SizeΦ4.5–32 mm

Φ3/16–1-5/16 inches
